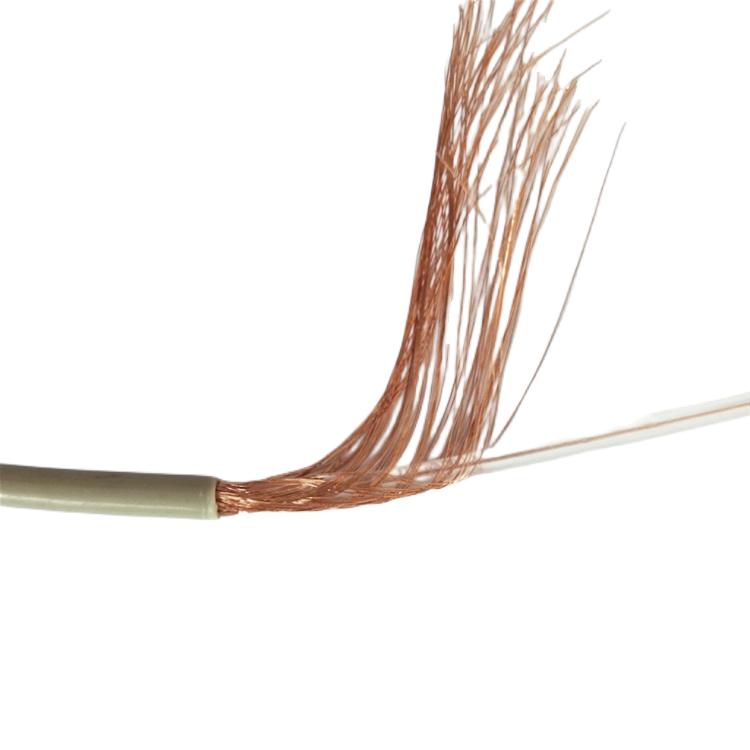

同軸線 RG-304
產品特性·抗電磁干擾和柔軟性良好，不僅重量輕,并且具有耐高溫、耐潮濕、耐腐蝕等特點，屏蔽、衰減、駐波等指標具備優良的電氣性能。
·不含有害物質，符合ROHS標準
應用范圍·: 同軸線 RG-304廣泛應用于通信、航空、智能機器人、軍事等領域。
技術參數:
型號 | 導體材質 | 絕緣材質 | 屏蔽材質 | 護套材質 | 導體結構 | 絕緣直徑 | 屏蔽外徑 | 護套外徑 |
RG178 | 鍍銀銅包鋼線 | PTFE | 單層鍍銀銅線編織 | FEP | 7/0.102 | 0.86 | 1.3 | 1.83 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG178FEP | 鍍銀銅包鋼線 | FEP | 單層鍍銀銅線編織 | FEP | 7/0.102 | 0.88 | 1.3 | 1.83 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG316 | 鍍銀銅包鋼線 | PTFE | 單層鍍銀銅線編織 | FEP | 7/0.175 | 1.52 | 1.95 | 2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG316D | 鍍銀銅包鋼線 | PTFE | 雙層鍍銀銅線編織 | FEP | 7/0.175 | 1.52 | 2.4 | 2.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG316FEP | 鍍銀銅線 | FEP | 單層鍍銀銅線編織 | FEP | 7/0.175 | 1.52 | 1.95 | 2.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG393 | 鍍銀銅線 | PTFE | 雙層鍍銀銅線編織 | FEP | 7/0.792 | 7.24 | 8.5 | 9.91 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG142 | 鍍銀銅包鋼線 | PTFE | 雙層鍍銀銅線編織 | FEP | 1/0.93 | 3 | 3.95 | 4.95 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG304 | 鍍銀銅包鋼線 | PTFE | 雙層鍍銀銅線編織 | FEP | 1/1.5 | 4.7 | 5.7 | 7.11 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG179 | 鍍銀銅包鋼線 | PTFE | 單層鍍銀銅線編織 | FEP | 7/0.102 | 1.6 | 2.04 | 2.54 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG179D | 鍍銀銅包鋼線 | PTFE | 雙層鍍銀銅線編織 | FEP | 7/0.102 | 1.6 | 2.5 | 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG179FEP | 鍍銀銅包鋼線 | FEP | 單層鍍銀銅線編織 | FEP | 7/0.102 | 1.6 | 2.04 | 2.54 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG179D | 鍍銀銅包鋼線 | FEP | 雙層鍍銀銅線編織 | FEP | 7/0.102 | 1.6 | 2.5 | 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG302 | 鍍銀銅包鋼線 | PTFE | 單層鍍銀銅線編織 | FEP | 1/0.64 | 3.71 | 4.2 | 5.13 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG303 | 鍍銀銅包鋼線 | PTFE | 單層鍍銀銅線編織 | FEP | 1/0.93 | 3 | 3.5 | 4.32 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RG180 | 鍍銀銅包鋼線 | PTFE | 單層鍍銀銅線編織 | FEP | 7/0.102 | 2.59 | 3 | 3.56 |
