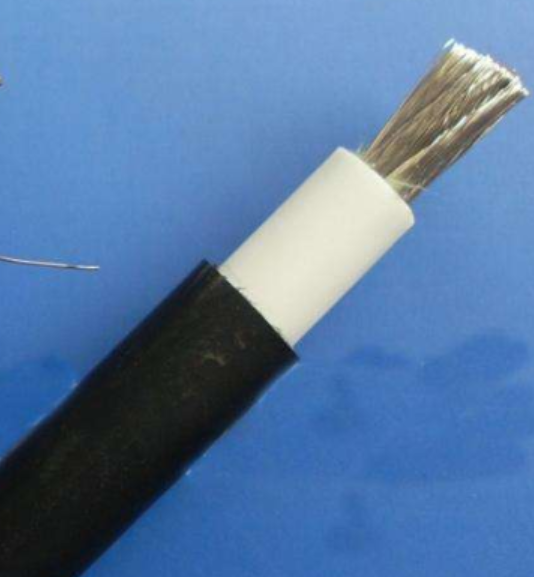

機車電纜WDZ-DCYJ-125-1*95mm2
機車電纜WDZ-DCYJ-125-1*95mm2適用范圍
機車電纜WDZ-DCYJ-125-1*95mm2適用于額定電壓3kV及以下的鐵路客車用電線電纜用的配電系統、控制系統、信號系統的電器裝置用電纜.特別適用于窄小空間以及有低煙、無鹵、阻燃要求的場合。
機車電纜WDZ-DCYJ-125-1*95mm2執行標準
機車電纜WDZ-DCYJ-125-1*95mm2執行GB / T 12528一2008
機車電纜WDZ-DCYJ-125-1*95mm2使用特性
1、額定電壓(文流)分為:500V、 750V、1500V、 3000V。
2、電纜線芯允許的長期工作溫度:
125℃交聯聚烯烴混合物絕緣 ·················································································125℃
125℃薄壁型電纜用聚烯烴混合物絕緣·····································································125℃
150℃薄壁型電纜用聚烯烴混合物絕緣·····································································150℃
3、電纜***低使用環境溫度:
交聯聚烯烴混合物絕緣·········································································-40℃
薄壁型電纜用聚烯烴混合物絕緣···············································································-60℃
4.耐Ell特性代號:
安裝在無礦物油和燃料油污染處································································1
安裝在受礦物油污染，但無燃料油污染處《耐礦物油).....................................................2
安裝在受礦物油污染和嫩料油污染處(耐礦物油和燃料油)...............................................3
電纜結構
型號及名稱
|
型號 |
名稱 |
芯數 |
標稱截面 |
|
WDZ一DCYJ一125 |
銅芯耐熱125℃交聯聚烯烴絕緣無鹵低煙阻燃鐵路客車用電線電纜 |
1 |
1~4mm² |
|
WDZ一DCYJ/2一125 |
耐礦物油銅芯耐熱125℃交聯聚烯烴絕緣無鹵低煙阻燃鐵路客車用電線電纜 |
1 |
0.75~300mm² |
|
WDZ一DCYJ/3一125 |
耐礦物油和燃料油銅芯耐熱125℃交聯聚烯烴絕緣無鹵低煙阻燃鐵路客車用電線電纜 |
1 |
0.75~300mm² |
|
WDZ一DCYJB一125 |
銅芯耐熱125℃薄壁型電纜用聚烯烴絕緣無鹵低煙阻燃鐵路客車用電線電纜 |
1 |
0.5~6mm² |
|
WDZ一DCYJB/2一125 |
耐礦物油銅芯耐熱125℃薄壁型電纜用聚烯烴絕緣無鹵低煙阻燃鐵路客車用電線電纜 |
||
|
WDZ一DCYJB/3一125 |
耐礦物油和嫌料油銅芯耐熱125℃薄壁型電纜用聚烯烴絕緣無鹵低煙阻然鐵路客車用電線電纜 |
||
|
WDZ一DCYJB一150 |
銅芯耐熱150℃薄壁型電纜用聚烯烴絕緣無鹵低煙阻燃鐵路客車用電線電纜 |
||
|
WDZ一DCYJB/2一150 |
耐礦物油銅芯耐熱150℃薄壁型電纜用聚烯烴絕緣無鹵低煙阻燃鐵路客車用電線電纜 |
||
|
WDZ一DCYJB/3一150 |
耐礦物油和洪料油銅芯耐熱150℃薄壁型電纜用聚烯烴絕緣無鹵低煙阻燃鐵路客車用電線電纜 |
||
|
WDZ一DCKYJE一125 |
銅芯耐熱125℃交聯聚烯烴絕緣及護套無鹵低煙阻然鐵路客車用電線電纜 |
2~48 |
0.5~2.5mm² |
|
WDZ一DCKYJE/B一125 |
銅芯耐熱125℃高強度薄壁聚烯烴絕緣交聯聚烯烴護套無鹵低煙阻燃鐵路客車用電線電纜 |
||
|
WDZ一DCKYJEPI一125 |
銅芯耐熱125℃交聯聚烯烴絕緣鍍錫銅絲編織屏蔽交聯聚烯烴護套無鹵低煙阻然鐵路客車用電線電纜 |
||
|
WDZ一DCKYJEPI/B一125 |
銅芯耐熱125℃高強度薄壁聚烯烴絕緣鍍錫銅絲編織屏蔽交聯聚烯烴護套無鹵低煙阻然鐵路客車用電線電纜 |
5.電纜敷設的允許彎曲半徑:
電纜直徑(D)為20m m及以下時應不小于6D。
電纜直徑(D)為20m m及以下時應不小于8D。
