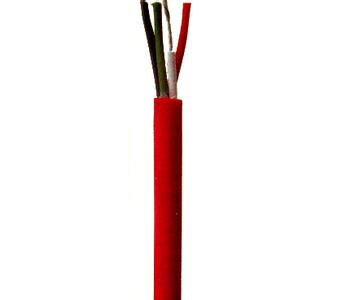

鐵氟龍J緣硅橡膠護套高溫電纜200℃ FYGCP
型號：FYGCP
執行標準：Q/IRMV3－2008
1、額定電壓：450/750V
2、工作溫度：-60～+200℃
3、導 體：絞合鍍錫銅線
4、J 緣：FEP 鐵氟龍
鐵氟龍J緣硅橡膠護套高溫電纜200℃ FYGCP
產品特性：
5、鍍錫銅絲屏蔽
6、護 套：硅橡膠
7、顏 色：紅/黃/蘭/白/黑/棕/綠等
在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良，小彎曲半徑為電纜外徑16倍，可移動使用。
使用于交流額定電壓450/750V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
交貨要求：
按雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
規格結構及技術參數：
鐵氟龍J緣硅橡膠護套高溫電纜200℃ FYGCP
特點/用途：
|
芯數×截面 |
導體結構 |
J緣厚度 |
J緣外徑 |
護套厚度 |
平均外徑 |
20 ℃時導體 |
|
2×0.12 |
7/0.15 |
0.25 |
0.95 |
0.70 |
3.90 |
163 |
|
3×0.12 |
7/0.15 |
0.25 |
0.95 |
0.70 |
4.0 |
163 |
|
4×0.15 |
7/0.15 |
0.25 |
0.95 |
1.0 |
4.80 |
163 |
|
5×0.12 |
7/0.15 |
0.25 |
0.95 |
0.90 |
4.90 |
163 |
|
6×0.12 |
7/0.15 |
0.25 |
0.95 |
1.0 |
5.40 |
163 |
|
7×0.12 |
7/0.15 |
0.25 |
0.95 |
1.0 |
5.50 |
163 |
|
2×0.2 |
7/0.20 |
0.25 |
1.10 |
0.80 |
4.30 |
90.4 |
|
3×0.2 |
7/0.20 |
0.25 |
1.10 |
0.80 |
4.50 |
90.4 |
|
4×0.2 |
7/0.20 |
0.25 |
1.10 |
1.0 |
5.20 |
90.4 |
|
5×0.2 |
7/0.20 |
0.25 |
1.10 |
1.0 |
5.50 |
90.4 |
|
6×0.2 |
7/0.20 |
0.25 |
1.10 |
1.2 |
6.20 |
90.4 |
|
7×0.2 |
7/0.20 |
0.25 |
1.10 |
1.2 |
6.20 |
90.4 |
|
8×0.2 |
7/0.20 |
0.25 |
1.10 |
1.2 |
6.50 |
90.4 |
|
10×0.2 |
7/0.20 |
0.25 |
1.10 |
1.40 |
7.60 |
90.4 |
|
16×0.2 |
7/0.20 |
0.25 |
1.10 |
1.50 |
8.60 |
90.4 |
|
19×0.2 |
7/0.20 |
0.25 |
1.10 |
1.50 |
9.0 |
90.4 |
|
2×0.35 |
19/0.16 |
0.25 |
1.30 |
1.0 |
5.0 |
53.1 |
|
3*0.35 |
19/0.16 |
0.25 |
1.30 |
1.0 |
5.40 |
53.1 |
|
4×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
6.20 |
53.1 |
|
5×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
6.50 |
53.1 |
|
6×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
7.0 |
53.1 |
|
7×0.35 |
19/0.16 |
0.25 |
1.30 |
1.20 |
7.0 |
53.1 |
|
8×0.35 |
19/0.16 |
0.25 |
1.30 |
1.40 |
7.80 |
53.1 |
|
2×0.5 |
19/0.18 |
0.25 |
1.40 |
1.0 |
5.20 |
40.1 |
|
3×0.5 |
19/0.18 |
0.25 |
1.40 |
1.0 |
5.50 |
40.1 |
|
4×0.5 |
19/0.18 |
0.25 |
1.40 |
1.10 |
6.10 |
40.1 |
|
5×0.5 |
19/0.18 |
0.25 |
1.40 |
1.20 |
6.80 |
40.1 |
|
6×0.5 |
19/0.18 |
0.25 |
1.40 |
1.30 |
7.20 |
40.1 |
|
7×0.5 |
19/0.18 |
0.25 |
1.40 |
1.30 |
7.40 |
40.1 |
|
2×0.75 |
19/0.23 |
0.25 |
1.70 |
1.20 |
6.30 |
24.6 |
|
3×0.75 |
19/0.23 |
0.25 |
1.70 |
1.40 |
7.0 |
24.6 |
|
4×0.75 |
19/0.23 |
0.25 |
1.70 |
1.60 |
8.0 |
24.6 |
|
5×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
8.20 |
24.6 |
|
6×0.75 |
19/0.23 |
0.25 |
1.70 |
1.50 |
8.60 |
24.6 |
|
7×0.75 |
19/0.23 |
0.25 |
1.70 |
1.60 |
8.80 |
24.6 |
|
2×1 |
19/0.26 |
0.25 |
1.80 |
1.20 |
6.60 |
20.4 |
|
3×1 |
19/0.26 |
0.25 |
1.80 |
1.40 |
7.30 |
20.4 |
|
4×1 |
19/0.26 |
0.25 |
1.80 |
1.40 |
7.80 |
20.4 |
|
7×1 |
19/0.26 |
0.25 |
1.80 |
1.60 |
8.60 |
20.4 |
|
2×1.5 |
19/0.32 |
0.30 |
2.25 |
1.30 |
7.70 |
12.7 |
|
3×1.5 |
19/0.32 |
0.30 |
2.25 |
1.40 |
8.20 |
12.7 |
|
4×1.5 |
19/0.32 |
0.30 |
2.25 |
1.40 |
8.50 |
12.7 |
|
7×1.5 |
19/0.32 |
0.30 |
2.25 |
1.60 |
10.50 |
12.7 |
|
2×2.5 |
19/0.41 |
0.40 |
2.80 |
1.50 |
9.20 |
7.43 |
|
3×2.5 |
19/0.41 |
0.40 |
2.80 |
1.50 |
9.60 |
7.43 |
|
4×2.5 |
19/0.41 |
0.40 |
2.80 |
1.60 |
10.60 |
7.43 |
|
7×2.5 |
19/0.41 |
0.40 |
2.80 |
1.80 |
12.6 |
7.43 |
