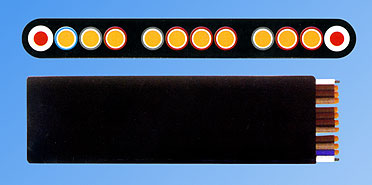

YVFBG卷筒通訊扁平軟電纜
一、產品特點及用途
YVFBG卷筒通訊扁平軟電纜適用于交流額定電壓450/750V及以下移動設備機上電器儀表連接線或信號傳輸，扁電纜兩邊加鋼絲承拉，可根據用戶需要在電纜設計中加入光纖作為通信之用，電纜具有阻燃耐熱、耐寒、防油、耐腐蝕、柔軟、耐磨、抗拉等特性，YVFBG卷筒通訊扁平軟電纜廣泛用于冶金、電力、石油化工、礦山、船舶工業、港口及移動設備制造等行業。
二、產品執行標準 ：執行企業標準.阻燃性能試驗執行GB12666.5-90規定
三、基本電纜規格及結構參數
移動設備卷筒用控制扁電纜
電纜型號 | 電壓KV | 電纜規格mm2 | 電纜外型尺寸㎜ | 電纜彎曲半徑㎜ | 電纜參考重量kg/m | 抗拉強度N/M |
YVFBG | 0.45/0.75 | 14×1.0+2×1.0P+2×4 | 46×15 | 300 | 0.983 | 17732 |
YVFBG | 0.45/0.75 | 16×1.0+2×1.0P+2×4 | 47×15 | 300 | 1.0895 | 18575 |
YVFBG | 0.45/0.75 | 19×1.0+2×1.0P+2×4 | 49×15 | 300 | 1.285 | 19837 |
YVFBG | 0.45/0.75 | 20×1.0+2×1.0P+2×4 | 50×16 | 320 | 1.324 | 20258 |
YVFBG | 0.45/0.75 | 21×1.0+2×1.0P+2×4 | 51×16 | 320 | 1.408 | 20679 |
YVFBG | 0.45/0.75 | 22×1.0+2×1.0P+2×4 | 52×16 | 320 | 1.479 | 21100 |
YVFBG | 0.45/0.75 | 23×1.0+2×1.0P+2×4 | 53×17 | 340 | 1.524 | 21521 |
YVFBG | 0.45/0.75 | 24×1.0+2×1.0P+2×4 | 54×17 | 340 | 1.619 | 21942 |
YVFBG | 0.45/0.75 | 28×1.0+2×1.0P+2×4 | 62×17 | 340 | 2.128 | 23626 |
YVFBG | 0.45/0.75 | 37×1.0+2×1.0P+2×4 | 75×17 | 340 | 2.604 | 27415 |
YVFBG | 0.45/0.75 | 14×1.5+2×1.5P+2×4 | 51×16 | 320 | 1.469 | 20680 |
YVFBG | 0.45/0.75 | 16×1.5+2×1.5P+2×4 | 55×17 | 340 | 1.578 | 21942 |
YVFBG | 0.45/0.75 | 19×1.5+2×1.5P+2×4 | 58×18 | 360 | 1.699 | 23837 |
YVFBG | 0.45/0.75 | 20×1.5+2×1.5P+2×4 | 59×18 | 360 | 1.786 | 24469 |
YVFBG | 0.45/0.75 | 21×1.5+2×1.5P+2×4 | 60×19 | 380 | 1.834 | 25100 |
YVFBG | 0.45/0.75 | 22×1.5+2×1.5P+2×4 | 61×19 | 380 | 1.907 | 25731 |
YVFBG | 0.45/0.75 | 23×1.5+2×1.5P+2×4 | 61×19 | 380 | 1.965 | 26365 |
YVFBG | 0.45/0.75 | 24×1.5+2×1.5P+2×4 | 72×19 | 380 | 2.204 | 26995 |
YVFBG | 0.45/0.75 | 28×1.5+2×1.5P+2×4 | 74×19 | 380 | 2.376 | 29520 |
YVFBG | 0.45/0.75 | 37×1.5+2×1.5P+2×4 | 97.5×19 | 380 | 2.842 | 35204 |
YVFBG | 0.45/0.75 | 14×2.5+2×2.5P+2×4 | 59×19 | 380 | 1.956 | 27350 |
YVFBG | 0.45/0.75 | 16×2.5+2×2.5P+2×4 | 60×19 | 380 | 2.156 | 29450 |
YVFBG | 0.45/0.75 | 19×2.5+2×2.5P+2×4 | 61×19 | 380 | 2.208 | 32600 |
YVFBG | 0.45/0.75 | 20×2.5+2×2.5P+2×4 | 62×20 | 400 | 2.259 | 33650 |
YVFBG | 0.45/0.75 | 21×2.5+2×2.5P+2×4 | 63×20 | 400 | 2.308 | 34700 |
YVFBG | 0.45/0.75 | 22×2.5+2×2.5P+2×4 | 66×22 | 440 | 2.392 | 35750 |
YVFBG | 0.45/0.75 | 23×2.5+2×2.5P+2×4 | 66×22 | 400 | 2.406 | 36800 |
YVFBG | 0.45/0.75 | 24×2.5+2×2.5P+2×4 | 80×20 | 400 | 2.47 | 37850 |
YVFBG | 0.45/0.75 | 28×2.5+2×2.5P+2×4 | 78×20 | 400 | 2.958 | 42050 |
YVFBG | 0.45/0.75 | 37×2.5+2×2.5P+2×4 | 115.5×20 | 400 | 3.556 | 51500 |
移動設備卷筒用0.45/0.75KV加光纖通訊扁平電纜
電纜型號 | 電壓KV | 電纜規格mm2 | 電纜外型尺寸㎜ | 電纜彎曲半徑㎜ | 電纜參考重量kg/m | 抗拉強度N/M |
YVFBG | 0.45/0.75 | 19×1.0+2×1.0P+6FO+2×4 | 60×15 | 300 | 1.4572 | 20258 |
YVFBG | 0.45/0.75 | 23×1.0+2×1.0P+6FO+2×4 | 68×17 | 340 | 1.8579 | 21942 |
YVFBG | 0.45/0.75 | 24×1.0+2×1.0P+6FO+2×4 | 72×18 | 360 | 2.0072 | 22363 |
YVFBG | 0.45/0.75 | 19×1.5+2×1.5P+6FO+2×4 | 72×18 | 360 | 1.98 | 24258 |
YVFBG | 0.45/0.75 | 23×1.5+2×1.5P+6FO+2×4 | 79×18 | 360 | 2.151 | 26784 |
YVFBG | 0.45/0.75 | 24×1.5+2×1.5P+6FO+2×4 | 85×18 | 360 | 2.55 | 27415 |
YVFBG | 0.45/0.75 | 19×2.5+2×2.5P+6FO+2×4 | 78.5×19 | 380 | 2.34 | 33020 |
YVFBG | 0.45/0.75 | 23×2.5+2×2.5P+6FO+2×4 | 91×20 | 380 | 2.956 | 37220 |
YVFBG | 0.45/0.75 | 24×2.5+2×2.5P+6FO+2×4 | 91×21 | 380 | 3.32 | 38270 |
